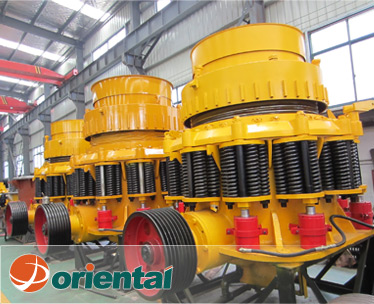

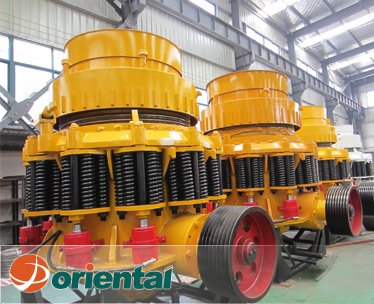

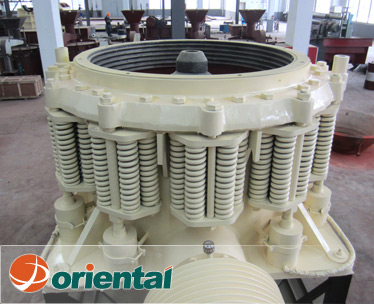

ZTC Cone Crusher
ZTC Cone Crusher Inquiry

ZTC Cone Crushers is widely used in metal and non-metallic mines, cement, construction, sand and metallurgical industries. It is applicable to materials like iron ore, nonferrous metal ores, granite, limestone, quartzite, sandstone, pebbles and so on.

Technical data
Standard Chamber Min discharge
opening (mm)
Power Capacity(t/h) Weight(kg)
Max feedsize Close discharge size(mm)
(mm) 6 10 13 16 19 22 25 38 51 64
ZTC600 C 95 10 37-45   20 25 30 35 45 50 76     5300
M 72 6 37-45 18 20 25 30 35 40 45 60     5300
ZTC1000 C 160 13 90-110     80 100 135 150 175 235     10800
M 115 10 90-110   65 75 90 120 135 150       10800
F 80 8 90-110 52 62 72 78 115           10510
EF 50 6 90-110 50 55 65 70 102           10510
ZTC1160 C 180 13 110-132     115 135 150 180 200 260     15500
M 130 10 110-132   100 110 120 135 165 175       15500
F 90 10 110-132   80 105 110 140           15500
EF 60 6 110-132 60 74 105 110 130           15500
ZTC1300 C 200 16 132-160       150 180 200 230 310 390   22300
M 150 13 132-160     115 140 160 190 210       22300
F 102 10 132-160   90 115 145 160           22300
EF 70 8 132-160   88 110 135 155           22300
ZTC1380 C 215 19 185-220         200 220 260 350 440   26300
M 160 16 185-220       155 180 200 220       26300
F 115 13 185-220     150 190 210 230         26300
EF 76 8 185-220   122 148 185 200           26300
ZTC1500 C 235 22 185-220           265 310 420 525 580 37750
M 175 19 185-220         215 240 265 320     37750
F 130 13 185-220     180 210 235 255 275       37750
EF 90 10 185-220   148 178 200 220           37750
ZTC1680 C 267 22 250-300           330 390 525 655 725 44300
M 203 16 250-300       230 270 300 330       44300
F 140 13 250-300   185 225 265 340           44300
EF 95 10 250-300   180 220 260 335           44300
Note: The capacity above is tested as per medium hard limestone.
Any change of ZTC Cone Crusher technical data shall not be advised additionally.
Features

● Simple and sound design of ZTC Cone Crusher is ideal for crushing operations;

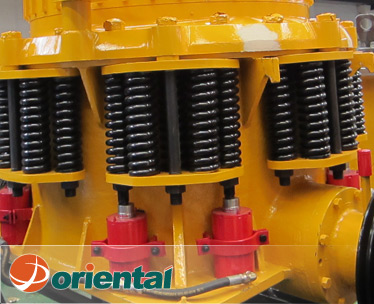

● The spring-loaded discharging system filters non-crushable materials automatically to avoid any damage to the machine;
● The interlocked lubrication unit is equipped with a main motor for additional safety;
● A rib liner is installed at the bottom of the frame to protect it from wearing.
● Generally there are four types of ZTC Cone Crushers: the SGC Standard or the Coarse type, the SGM Fine or the Medium type, the SGF Short Head type &SGEF Super Fine Type. All these types are used for secondary and tertiary crushing both in stationary and portable applications.

Application
ZTC Cone Crusher From China
